Camera coverage design
Coverage you can prove on the plan.

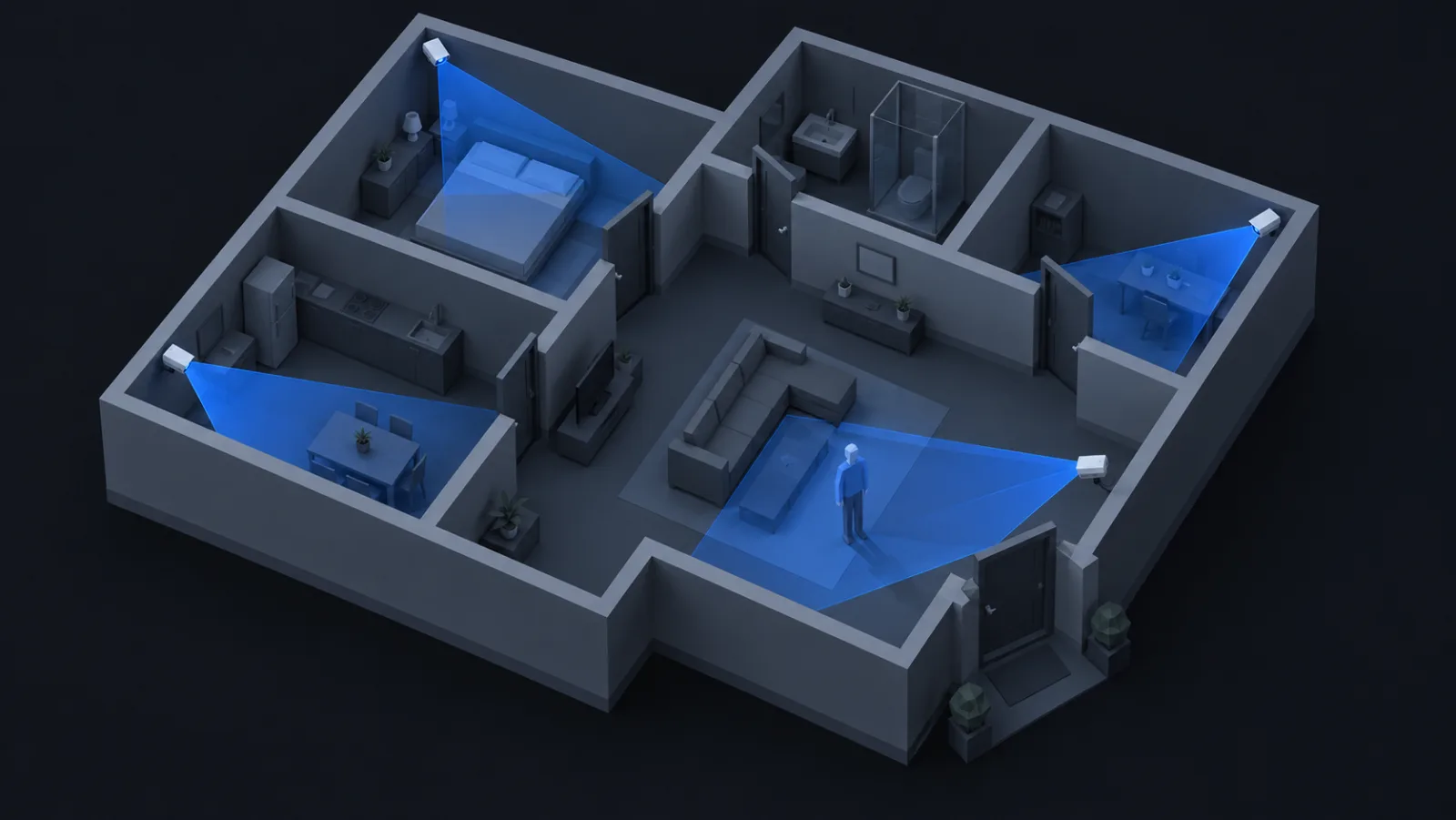

Draw the building, place real cameras, and see exactly what each one sees through the walls, doors and corners you drew. Then print a scaled drawing your client can sign.
Runs in the browser. Start on the free plan and upgrade when the work pays.
Features
A CAD that knows what a camera is.
CameraCAD treats a camera as an instrument with a lens, a sensor and a line of sight, and draws what that instrument sees.

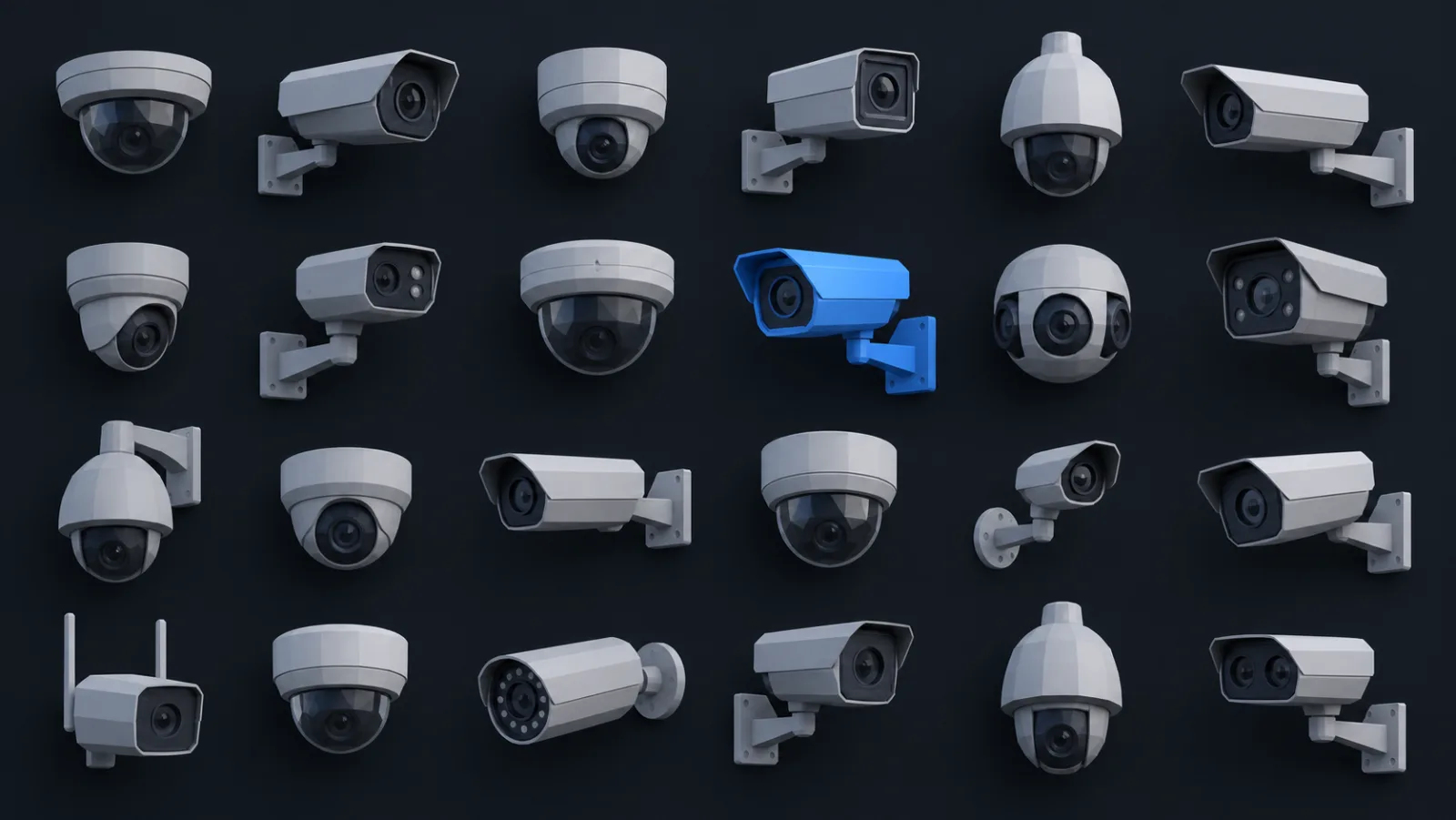

Camera database
Real hardware, real geometry.
15,000+camera models
25brands
DORIdetect · observe · recognise · identify ranges
Lens, sensor and range data taken from the manufacturers' own datasheets, so the cone on the paper matches the camera that goes on the wall.
Open a sheet and place your first camera.
Free for home projects and study. Paid plans for installers, integrators and teams.
